The all-new Venture FH models are Horizontal light path systems, often better suited to small 3 dimensional, or cylindrical parts.
FH models feature a fixed or a rotating workstage and the same intuitive Fusion FV software. Parts can be placed either directly onto the stage surface or into suitable work-holding.

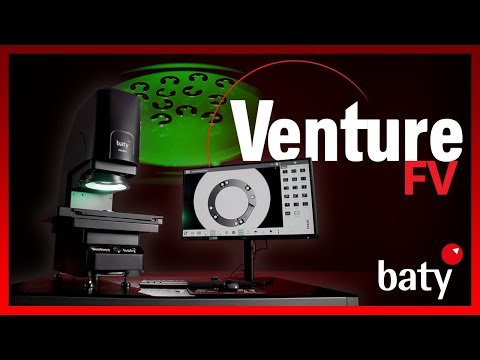

The Baty Venture FV series of field of view inspection
machines represents a significant advancement in the Baty product line,
providing remarkable measurement speeds on multiple parts simultaneously.
Various stage options allow the impressive Field of View
measurement functionality to be stitched together over larger areas to
accommodate either larger parts, or larger batches of smaller parts.
Setting a new standard in Bowers Group’s precision
measurement offering, the Baty Venture FV series offers new levels of
efficiency and versatility combined with user-friendly software. Equipped with
auto part recognition and a powerful 20Mega pixel camera, coupled with
telecentric LED profile lighting and split ring LED ring lighting, this new
level in vision systems delivers exceptional image quality. Its intuitive
software streamlines the measurement process, providing instant pass/fail
clarification and detailed reporting allowing for seamless operation and
efficient data analysis.
The FH1080’s fixed workstage platform allows parts to be
placed for immediate measurement.Standard work holding accessories are
available including the self centering vice the dual axis Vee block. These
accessories locate into the stage platform via a central pivot location for
ease of use.
The combination of surface lighting, auto-focus and rotary
control allows surface features on different planes to be measured in a single
shot.
FH-1080
Featuring a fixed or a rotating workstage, parts can be
placed either directly onto the stage surface or into suitable work-holding.
FH-1080AF
The AF model features additional programable surface ring
lighting, autofocus and a CNC rotating workstage. This allows features on
different sides of the part to be measured in the same automated inspection.
Cylindrical parts may be rotated, allowing multiple measurements at fixed
angular intervals to measure:
Baty Venture FH
