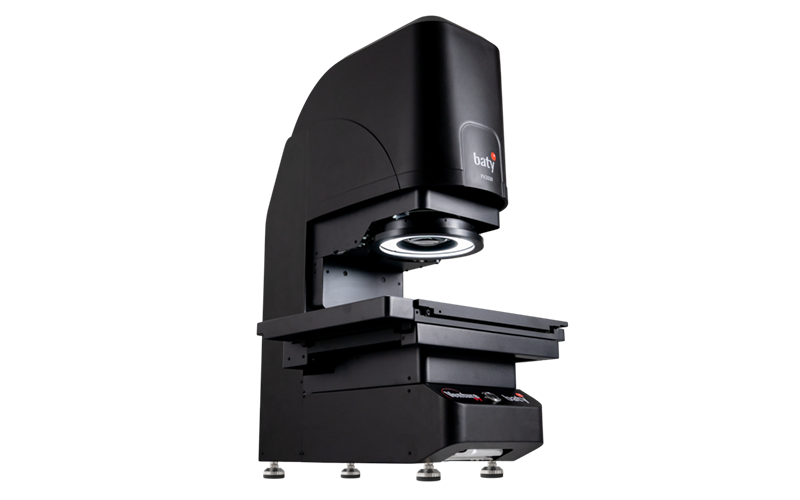

Baty Venture FV

The Baty Venture FV series of field of view inspection machines represents a significant advancement in the Baty product line, providing remarkable measurement speeds on multiple parts simultaneously.

Various stage options allow the impressive Field of View measurement functionality to be stitched together over larger areas to accommodate either larger parts, or larger batches of smaller parts.

Setting a new standard in Bowers Group’s precision measurement offering, the Baty Venture FV series offers new levels of efficiency and versatility combined with user-friendly software. Equipped with auto part recognition and a powerful 20Mega pixel camera, coupled with telecentric LED profile lighting and split ring LED ring lighting, this new level in vision systems delivers exceptional image quality. Its intuitive software streamlines the measurement process, providing instant pass/fail clarification and detailed reporting allowing for seamless operation and efficient data analysis.

Applications Vision Systems

Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water

INSTANT

Instant measurements at the push of a button
Ultra-fast reporting with SPC included
Character recognition automatically reads & reports individual part numbers during batch measurement
Hundreds of dimensions in 1 second

HIGHLY ACCURATE

Double telecentric optics for high resolution
Motorized auto focus
Auto feature edge detection removes operator influence

USER FRIENDLY

Simple, intuitive software and user interface
Automatic measuring and dimensioning
Automatically import dimensions

3D MEASUREMENT

With optional Confocal Probe
Works across various surfaces including transparent materials, outperforming traditional touch probes

ULTRA FAST DIMENSIONAL MEASUREMENT

Create instant measurements by simply placing known components randomly on the stage. New parts can be easily measured by automatically extracting features from the scanned image and adding dimensions to create an inspection which is then saved for future use.
Automated part inspection with additional CNC playback for parts larger than the field of view. Fast set up and inspection time to achieve reduced production costs.

AUTOMATIC PART RECOGNITION

No need to select a program or orientate a part with automatic part recognition. The intuitive software will recognize the part, select the inspection program and measure each part in the batch, saving time and eliminating operator error.

SIMULTANEOUS MULTIPLE PART MEASUREMENT

Quickly and accurately measure hundreds of dimensions on hundreds of parts in seconds using multiple lighting conditions. Instant on screen pass/fail classification for the inspector, with detailed reports automatically saved to your preferred location.
