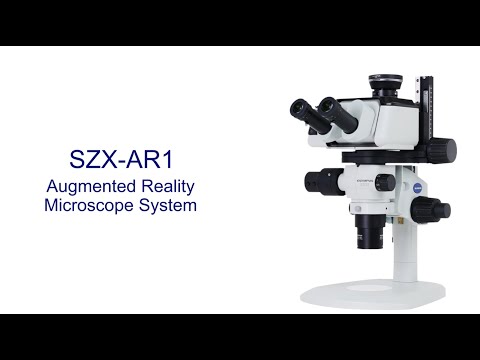

SZX-AR1 Augmented Reality Microscope System

Simplify Complex Microscope-Based Manufacturing Tasks

The AR1 microscope system enables you to overlay text and digital images over your microscope's field of view, making it easy to follow directions, read notes, and even watch videos without removing your eyes from the eyepieces.

The AR1 module works with Olympus SZX stereo microscopes, turning them into augmented reality tools that improve the speed and efficiency of your microscope-based manufacturing tasks and training.

Sigma is the authorized distributor of Evident - Olympus Microscopes in the UAE

Learn More »

Applications Stereo Microscopes

Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water

Create an assembly manual using the AR1 software and use it on a PC that has the AR1 software installed.
Ergonomic components enable you to adjust the tilt angle from 5 to 45 degrees and the eyepoint height within a 120 mm (4.7 in.) range.
Open and project the assembly manual into the microscope's field of view.
During assembly, keep your eyes in the eyepieces, reducing eye movement and errors caused by memorization mistakes.
Record images and movies of the assembly process for analysis or record keeping.
Stay comfortable while you work with ergonomic components.

SZX-AR1 Augmented Reality Microscope System

Product Brochures

Olympus SZX-AR1.pdf

SZX-AR1 Augmented Reality Microscope System
